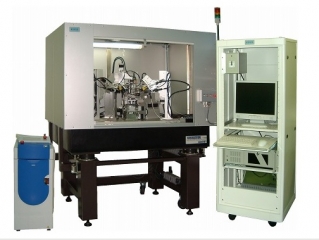

KS-200-LP LD/PD automatic alignment system

Adjusted to optimize the position of the optical fiber junction photodiode and laser diode is a device for fixing YAG laser welding. Our application software CockPit (Patent No.3456524), standardized systems and automated docking Pikusachisofuto, application software and a variety of LD / PD can be supported.

Feature

Device mechanism	12 Axis Automatic (your special specifications are available) *LD/PD interchangeable fiber chuck
Control Software	Motion Control Cockpit (additional type optical tracking software)
Computer built in device	Motor control board / A/D board / image board
Stepping motor driver	12 Axis(corresponding to micro)
O/E converter	Optical power of optical fiber voltage conversion
I / O relay BOX	YAG and air control valves, etc.
Anti-Shake base/Protective cover	Protective cover with arm and mounting Anti-Shake base
Computer	WindowsPC

Items		Distance	Resolution
Movement of LD/PD	X stage	±15mm	0.025μm
	Z stage	±15mm	0.025μm
	θstage	±60°	0.00005°
Movement of fiber	Z stage	±15mm	0.025μm
Movement of fiber	θstage	±105°	0.00005°
Movement of the sleeve	Z stage	±15mm	0.025μm
Movement of the YAG	Z stage	±50mm	0.025μm
Movement of the YAG	F stage	±10mm	0.025μm
