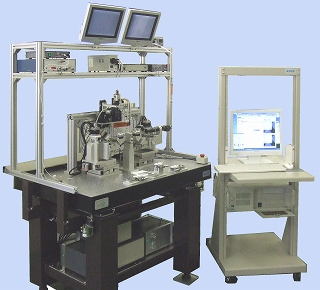

KS-502-AM

Because of the rigidity adopted SUS-made stage, make for a stable alignment disturbances such as temperature and vibration. Motion made by our control program “Cockpit” performed by aligning high. “Cockpit” Because you can customize for your own use, the type of optical device, it is possible to construct an environment for optimum alignment conditions and quality of various optical devices.

Feature

Device mechanism 12 Axis Automatic (your special specifications are available)
* Holders of the waveguide array and is interchangeable
Control Software Motion Control Cockpit (additional type optical tracking software)
Computer built in device Motor control board / A/D board / image board
Stepping motor driver 12 Axis(corresponding to micro)
O/E converter Optical power of optical fiber voltage conversion
UV light source Control of foot operation
Dispenser Control of foot operation
Anti-Shake base Anti-Shake base mounting unit with arm
Computer WindowsPC

Items Distance Resolution
Movement of the emission array X stage ±25mm 0.025μm
Y stage ±15mm 0.025μm
Z stage ±25mm 0.025μm
θx stage ±8° 0.00078°
θy stage ±8° 0.0006°
θz stage ±8° 0.0006°
Movement of the injection array X stage ±25mm 0.025μm
Y stage ±15mm 0.025μm
Z stage ±25mm 0.025μm
θx stage ±8° 0.00078°
θy stage ±8° 0.0006°
θz stage ±8° 0.0006°
